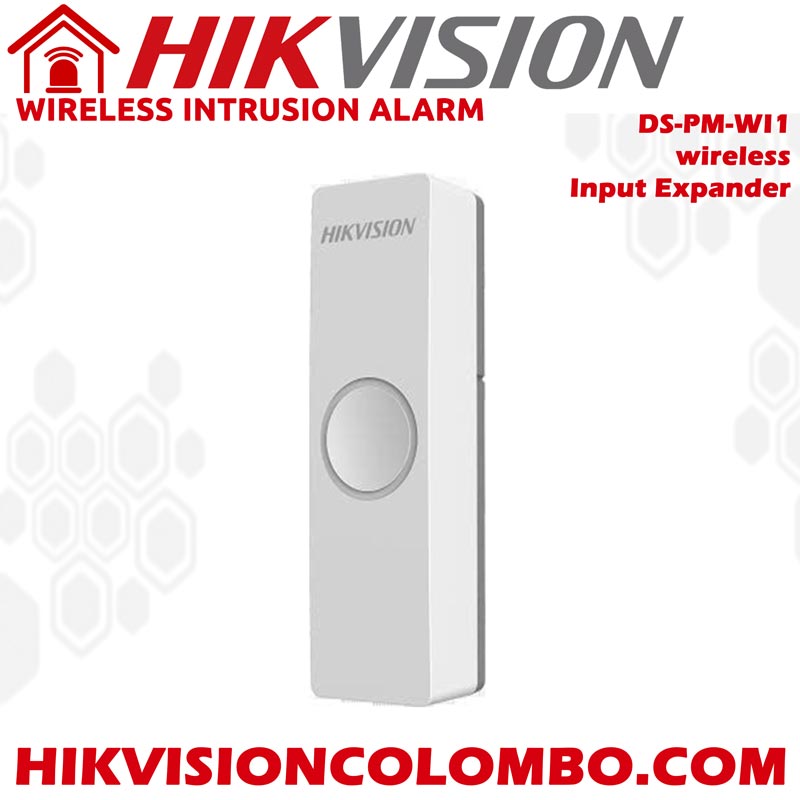

Hikvision DS-PM-WI1 Wireless Input Expander Best price in sri lanka

The DS-PM-WI1 wireless input expander, which supports wireless FM data transmission, is a detection device. The module is connected with the detector through wired mode, and sends the alarm signal in wireless mode to the security control panel which will upload the alarm signal to center. The module is applied to indoor scenes.

Key Feature
• Supports communication protection against wireless data collision.
• Supports two-way communication the maximum communication distance is 800 m in open area.
• Secure wireless data with AES-128 encrypt.
• CR123 A/3 V power supply, can be used for more than two years.

Hikvision 433MHz Wireless Input Expander

RF 433MHz, 1-input expander
Communicates up to 800 m (in open areas)
Status LEDs: One dual-color indicator

Software Features

Tamper-Proof Front and rear
Hardware Features
Alarm Input1 NC input
Switch1 switch for turning on/off LED
Indicator1 red & green LED

Electrical Characteristics

Electrical Characteristics
Power SupplyCR123 A/3 V
Battery Life Span2 years

General

Operation Temperature– 10 °C to 55 °C (14 °F to 131 °F)
Operation Humidity10% to 90% (non-condensing)
Shell Materia lPC + ABS
Dimension(WxHxD)84 mm × 25 mm × 21 mm (2.52″ × 0.75″ × 0.63″)
Weight38.5 g (0.085 lb)
Application Scenario Indoor
Installation Method Wall mounting
